Specifications

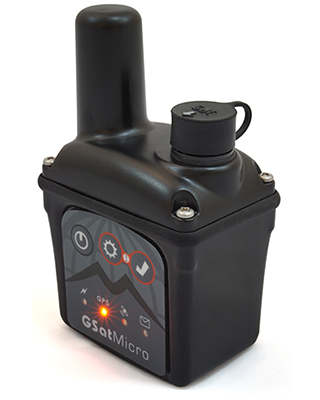

GSatMicro

Weight and Dimensions

  • External Dimensions: 2.1875" x 1.9375" x 3.5" (55.5mm x 49.25mm x 89mm)
  • Internal Dimensions: 1.77" x 1.34" x 1.77" (45mm x 34mm x 45mm)
  • Weight: 4.5 ounces (127.5 grams)

Power and Battery

  • Power Connections:

    - USB DC Input (4.5V to 5.5V)
    - High Voltage DC Input (7.5V to 36V) (protected to 40V DC)
    - Internal Battery

  • Battery:

    - Battery Type: Internal LiPo 2000mAh with PTC
    - Battery Charge Time USB: 4-6 hours
    - Battery Charge Time DC: 2-3 hours
    - Charging temperature range: 15C to 60C
    - Discharging temperature range: -20C to 60C

Environment

  • Nominal Battery Performance At Temperature Under Load

    2.3Ah @ 20C @ 1A
    2.02Ah @ -10C @ 1A
    1.82Ah @ -20C @ 1A
    1.57Ah @ -25C @ 1A
    .2Ah @ -30C @ 1A
    .2Ah @ -30C @ 1A

  • Waterproof and Intrusion Protection
    IP67 Rating
    - Liquid Immersion, up to 1 m depth
    - Dust tight. No ingress of dust; complete protection against contact (dust tight).

Other

  • LED notification ligthts

    Satellite - Orange
    GPS - Orange
    Power - Green
    Message- Blue
    Emergency - Red

GSatMicro X

Weight and Dimensions

  • External Dimensions: 2.1875" x 1.9375" x 3.5" (55.5mm x 49.25mm x 89mm)
  • Internal Dimensions: 1.77" x 1.34" x 1.77" (45mm x 34mm x 45mm)
  • Weight: 4.5 ounces (127.5 grams)

Power and Battery

  • Power Connections:

    - USB DC Input (4.5V to 5.5V)
    - High Voltage DC Input (7.5V to 36V) (protected to 40V DC)
    - Internal Battery

  • Battery:

    - Battery Type: Internal LiPo 2000mAh with PTC
    - Battery Charge Time USB: 4-6 hours
    - Battery Charge Time DC: 2-3 hours
    - Charging temperature range: 15C to 60C
    - Discharging temperature range: -20C to 60C

Environment

  • Nominal Battery Performance At Temperature Under Load

    2.3Ah @ 20C @ 1A
    2.02Ah @ -10C @ 1A
    1.82Ah @ -20C @ 1A
    1.57Ah @ -25C @ 1A
    .2Ah @ -30C @ 1A
    .2Ah @ -30C @ 1A

  • Waterproof and Intrusion Protection
    IP67 Rating
    - Liquid Immersion, up to 1 m depth
    - Dust tight. No ingress of dust; complete protection against contact (dust tight).

Other

  • LED notification ligthts

    Satellite - Orange
    GPS - Orange
    Power - Green
    Message - Blue
    Emergency - Red

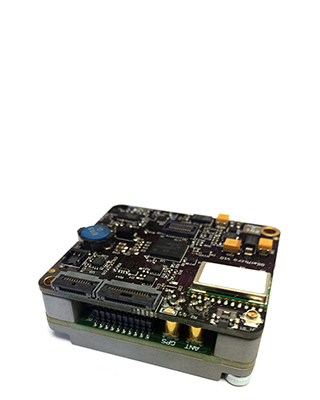

GSatMicro OEM

Weight and Dimensions

  • Dimensions: 1.61" x 1.77" x 0.67" (41mm x 45mm x 17mm)
  • Weight: 1.5 ounces (42.5243 grams)

Power and Battery

  • Power Connections:

    - External AC
    - External DC

All Devices

Processor

  • 32 bit ARM

Communication Chipsets

  • GPS Chip
    GPS Networks: GPS + Galileo or GPS + GLONASS

  • Iridium 9602 SBD transceiver

    FCC ID: Q639603N
    Manufacturer: Iridium Satellite LLC
    Frequency: 1616 – 1626.5Mhz
    Power: 1.479 W
    View 9602 Specifications

Data Network

Iridium

Powered by a uniquely sophisticated global constellation of 66 cross-linked Low Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across oceans, airways and polar regions.

Inputs and Ouputs

  • RS232 Interface
  • USB Interface
  • 2x Relay Outputs @ 2A
  • 2x Analog Inputs (0V to 30V DC)
  • Optional SMA antenna connector

Sensors

  • Accelerometer
  • Digital compass

Operating System

  • Embedded Lua (eLua)

Performance

  • Channels: 52
  • Frequency: LI - 1,575 MHz
  • Sensitivity GPS: Tracking: -165 dBm, Navigation: -160 dBm, Acquisition (cold start): -147 dBm
  • Sensitivity GLONASS: Tracking: -163 dBm, Navigation: -159 dBm, Acquisition (cold start): -147 dBm
  • Position Accuracy (autonomous): < 2.5 m CEP
  • Time To First Fix: Hot Start: < 1s, Warm Start: < 30s
  • Time To First Fix: Cold Start: < 35s

Environment

  • Temperature Range: -20C to +45C

Encryption

  • AES 256-bit encryption

Electrostatic Discharge (ESD) Standards

  • USB: ESD Standard IEC 61000−4−2: Air Discharge ±15 kV / Contact Discharge ±8 kV
  • RS232: Air Discharge ±15 kV / Contact Discharge ±8 kV
  • DC Power Pins: 60V maximum for nonrepetitive 1 second transient, 40V continuous protection, 32V operating
  • Input/Output Pins: No ESD protection

Other

Harmonized Code:

  • 8517.18.0050
